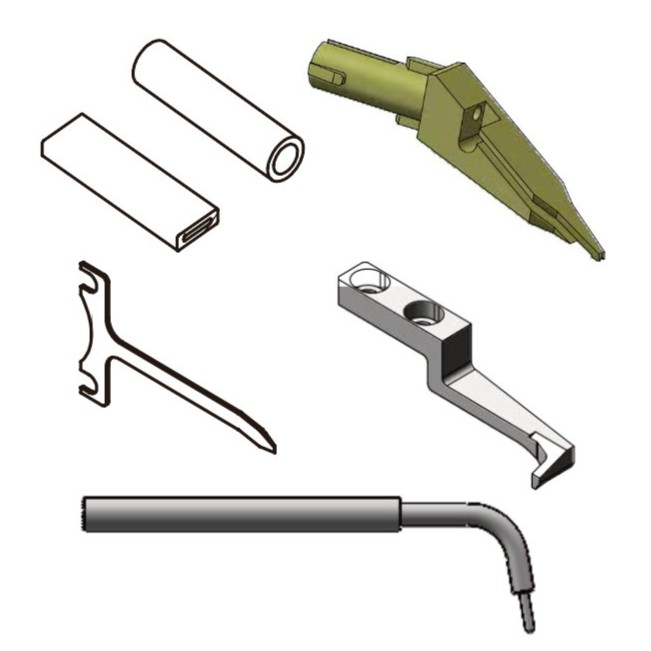

Beyond the wedge tool itself, the bonding process depends on a set of supporting tools that spark the wire, hold the lead frame steady, and trim the wire after each bond. UPT supplies EFO tools, bonding fingers and cutters as a matched set, engineered for consistent performance across high-volume production.
Platinum & Iridium EFO Tips · High-Strength Bonding Fingers · Precision-Ground Cutters

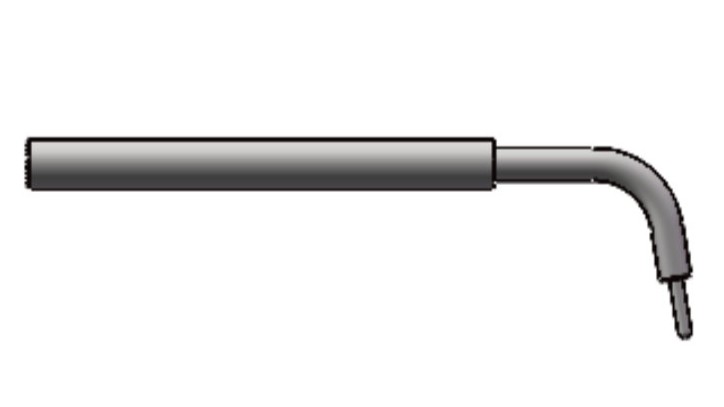

EFO Tools
EFO (Electronic Flame Off) tools spark the wire tip to form the free air ball before the first bond. UPT EFO tools are built with a stainless steel body and a platinum or iridium alloy tip, selected for stable discharge performance and extended service life — both are critical to consistent FAB size and ball shape across a production run.
Configurations are available to match a wide range of bonding equipment platforms, with different tip angles and shank lengths for different machine geometries.

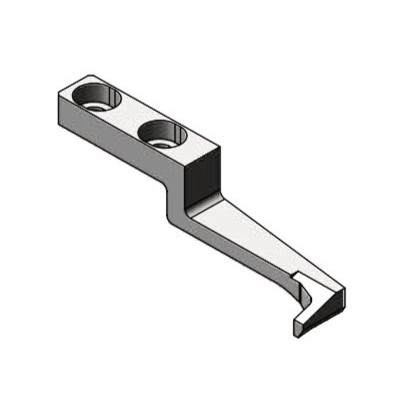

Bonding Fingers
Bonding fingers secure the lead frame in place during the bonding process, providing reliable mechanical stability shot after shot. UPT bonding fingers are manufactured from high-strength materials with specialized surface treatment for extended service life. Standard and custom configurations are available for different equipment platforms and package designs.
Cutters
Wire bonding cutters trim the aluminum wire or ribbon after the second bond. UPT cutters are engineered with optimized blade geometry and material selection for stable cutting performance, long tool life, and controlled cut depth and width — key factors in maintaining high yield across the bonding line.
Cutter configurations are matched to wire diameter and ribbon dimension, with multiple body styles available for different equipment platforms.
Wire & Ribbon Guides
Wire guides and ribbon guides route the wire cleanly from spool to bonding tool during the feed process. UPT guides are available for different wire bonding platforms and applications, manufactured from advanced polymer materials to ensure dimensional consistency, stable wire feeding, and high wear resistance during bonding processes.

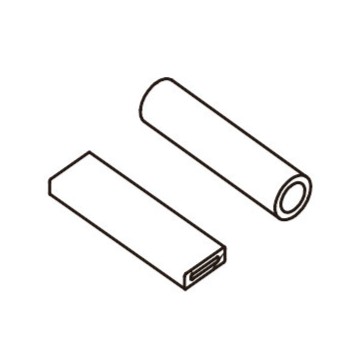

Wire Tubes
Wire tubes protect and guide the wire along its path to the bonding tool. UPT offers round and square wire tubes for various wire dimensions, featuring smooth internal surfaces, stable quality, and extended service life for high-reliability semiconductor packaging applications.
Full EFO Tool, Bonding Finger & Cutter Reference
UPT produces EFO tools, bonding fingers and cutters across a wide range of equipment-matched configurations, and also accepts custom designs from your own drawings. Download the complete reference to see the full range of options.
How to Order
Not Sure Which EFO Tool, Finger or Cutter Fits Your Equipment?
Send us your bonding equipment model, wire type and diameter — our engineers will confirm the matching configuration and recommend the right part.
