From picking up the die to dispensing epoxy and releasing it from the tape, die attach is a sequence of small, precise mechanical steps — each with its own consumable tool. UPT supplies the full set: pick up tools and tip holders, push up needles with matching holders and caps, and epoxy stamping and dispensing tools. Materials, sizes and tip geometry are selected to match your die size, adhesive film and bonding equipment.
Plastic · Metal · Rubber · Ceramic tip materials · Custom sizing on request
Choose a Tool Category

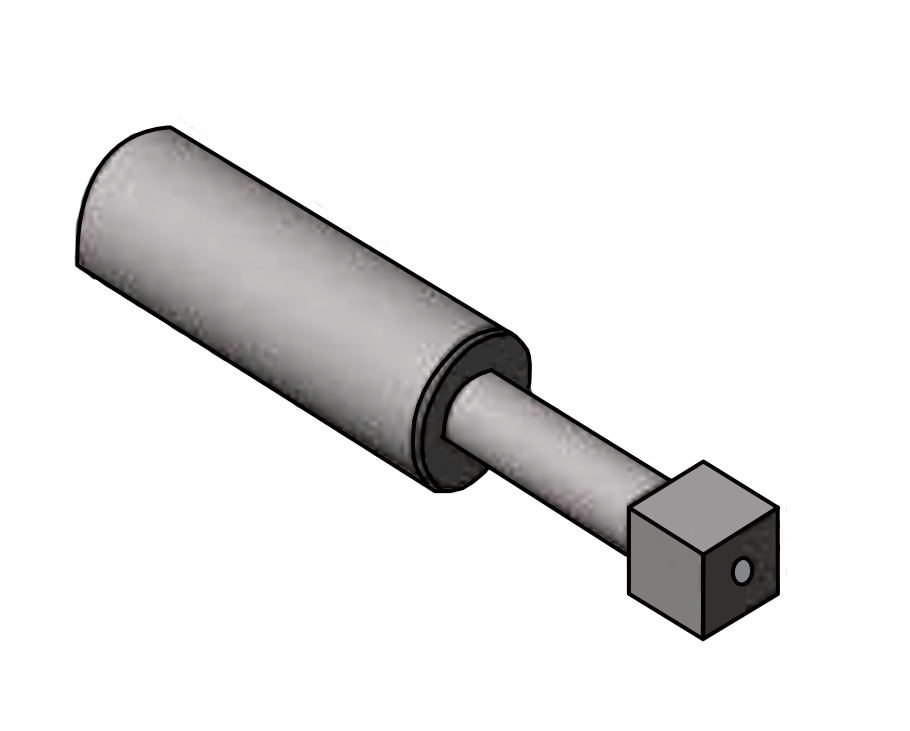

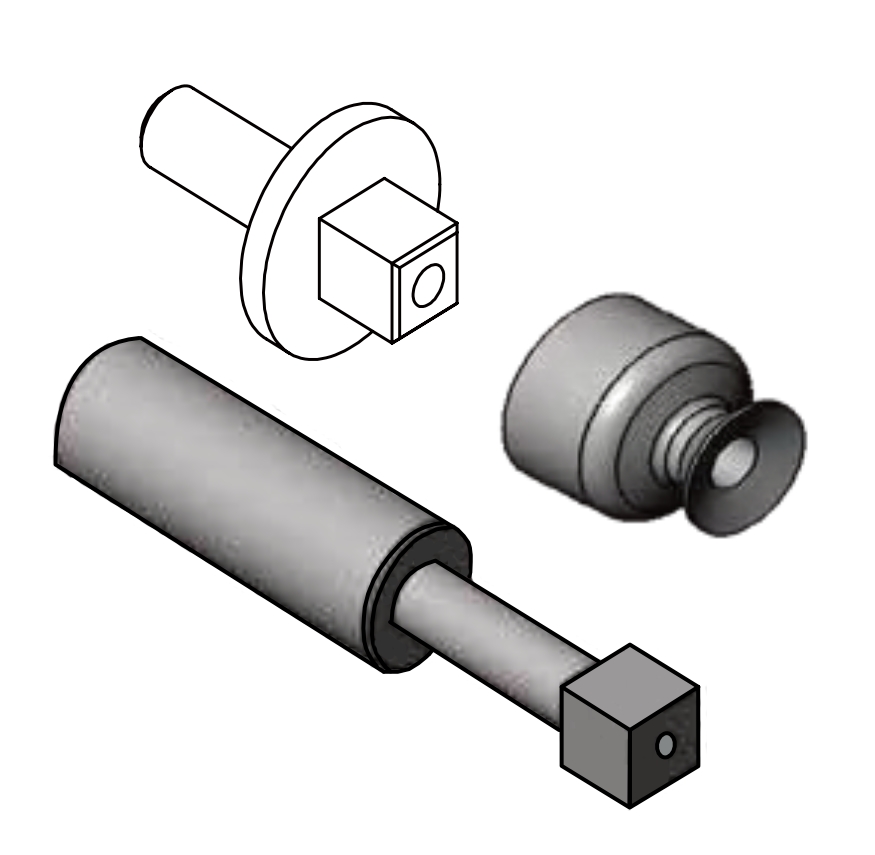

Pick Up Tool
Collets, tip holders and suction cups that pick up the die — available in plastic, metal, rubber and ceramic, with hole sizes down to 0.08 mm.

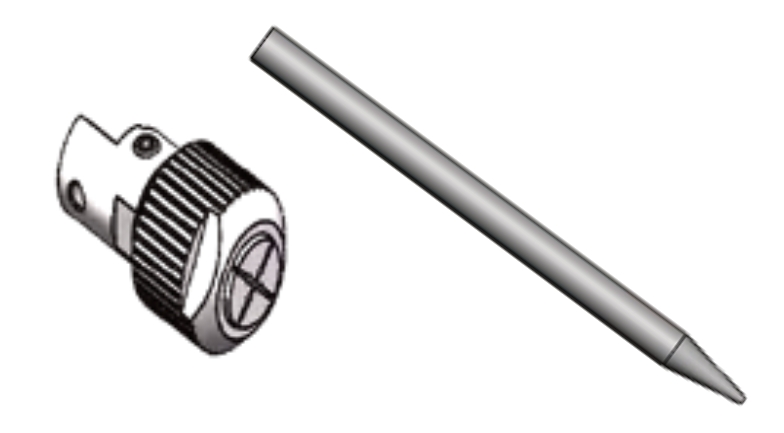

Push Up Needle
Needles, holders and caps that lift the die off the tape from below as the pick up tool engages — tungsten carbide, high-speed steel or plastic, single or multi-needle configurations.

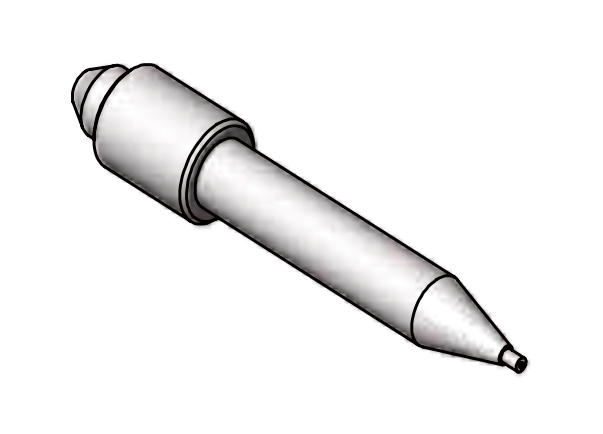

Epoxy Stamping Tool
Transfers a measured amount of epoxy from the glue plate to the lead frame bond pad — fast cycle time with consistent glue volume.

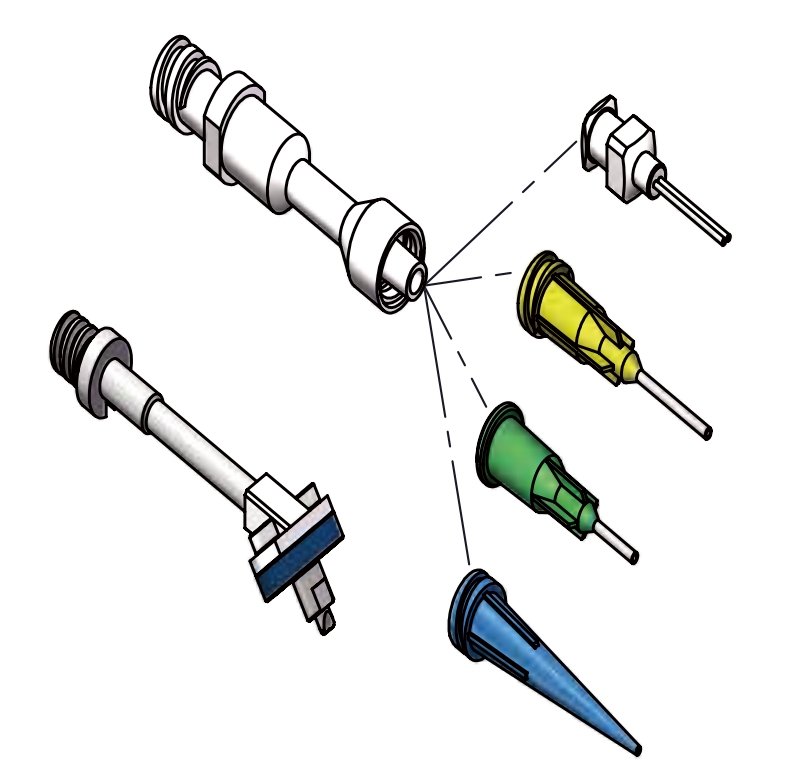

Epoxy Dispensing Tool
Dispenses epoxy from a syringe onto the die bond location using air pressure — precision-finished bores keep glue flow smooth and stringing to a minimum.

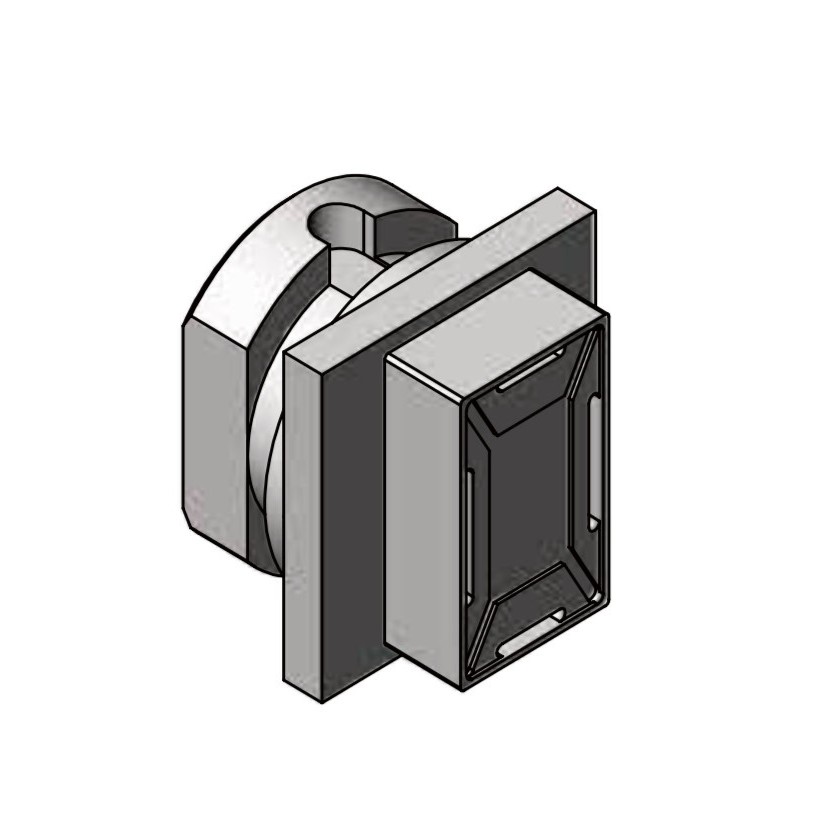

Spanker / Holder / Shank
Spankers, holders and shanks that mount and support the die bonding tool during the attach and press-down motion — equipment-matched configurations for stable, consistent alignment.
How to Order
Not Sure Which Tool Fits Your Process?
Send us your die size, bonding equipment model, and tape or lead frame details — our engineers will confirm the tool style and recommend the right configuration. Full dimensional tables for every series are available on request.
